Detail Produk

Share

Flat Panel 4.9-5.875 GHz 23dbi

Saat ini kami tidak memiliki persediaan barang ini.

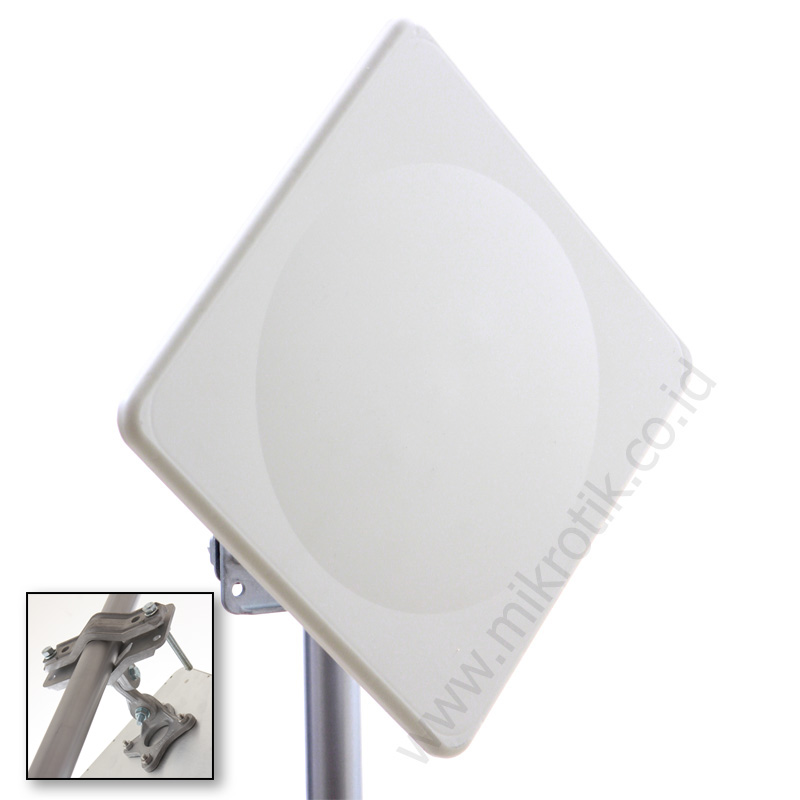

Flat Panel 4.9-5.875 GHz 23dbi
klik pada gambar untuk melihat gambar lebih besar

Kategori:Outdoor Antenna
Kode:MA-WA58-1X
Harga:Rp 1.550.000,00

4.9-5.875 GHz Band Flat Antena (diamond shape) dengan gain tinggi (23 dbi), termasuk 1 buah kabel jumper N-Male to N-Male 1 meter.


download
brosur
(pdf)


5 GHz Band Antena dengan gain tinggi bentuk desain diamond shape menyediakan rentang tertinggi standar ETSI. Dengan berat yang ringan dan konstruksi tahan lama.

Electrical

  • Frequency range: 4.9 - 5.875 GHz
  • Gain,typ.: 23 dBi @ 5.15-5.875 , 21 dBi @ 4.9-5.15
  • VSWR, max.: 1.5 : 1@ 5.15-5.875 , 1.9: 1 @ 4.9-5.15
  • 3 dB Beam-Width, H-Plane, typ.: 10.5
  • 3 dB Beam-Width, E-Plane, typ.: 10.5
  • Side Lobes, min.: -23 dB
  • Polarization: Linear Vertical
  • Cross Polarization, min.: -24 dB
  • Front to Back Ratio, min.: -30 dB
  • Input power, max: 30 Watt
  • Input Impedance: 50 Ohm
  • Lightning Protection: DC Grounded

Mechanical

  • Dimensions (HxWxD): 305 x 305 x 15 mm ( 12"x12"x0.6")
  • Connector: N-Type, Female
  • Back Plane: Aluminum; protected through chemical passivation
  • Radome: UV Protected Polycarbonate

Environmemtal

  • Operating Temperature Range: -40 C to +65 C
  • Vibration: According to IEC 60721-3-4
  • Wind Load: 200 km/h (survival)
  • Flammability: UL94
  • Water Proofing: IP-67
  • Humidity: ETS 300 019-1-4, EN 302 085 (annex. A.1.1)
  • Ice and Snow: 25 mm radial (survival)
  • Salt Fog: According to IEC 68-2-11
  • Service Life: > 10 years

Seluruh harga yang tercantum di atas belum termasuk PPN 10% dan biaya pengiriman.
