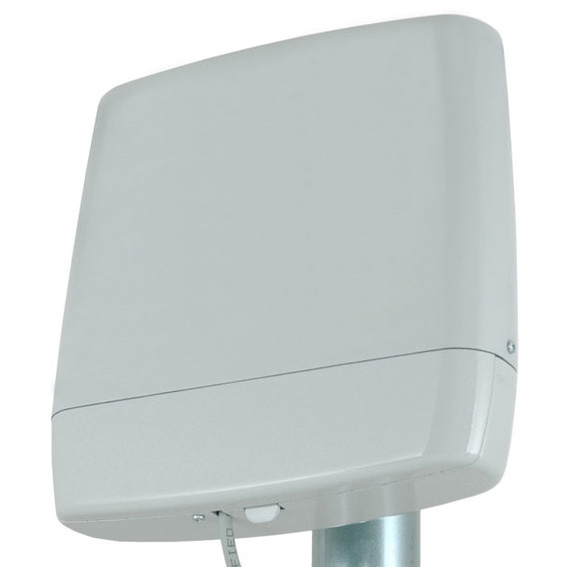

StationBox is a universal enclosure designed for outdoor installations. One of
the StationBox’s main advantages is its universality and applicability for different
kind of devices and antennas from different suppliers. After mounting all components
look like one entity. (tidak termasuk pigtail)

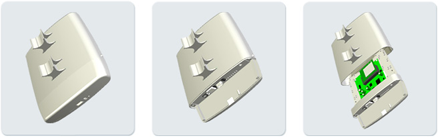

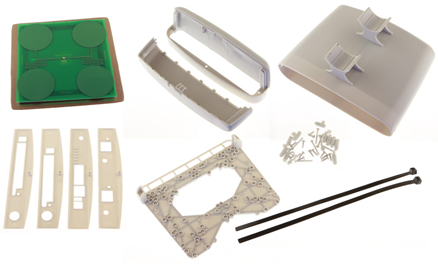

The StationBox is made of durable plastic and it consists only of 4 parts. Our
outdoor enclosure is provided with compact mounting bracket. In addition, there
is a possibility of using NanoBracket for the installation which enables to adjust
the enclosure to any direction in range of 90° to each side. The StationBox’s
design is very simple and it is made with emphasis on its functionality.
The main purpose of this product is not only the installation of the device but
also the simplicity of sequential service. The StationBox is ingenious solution
for outdoor installations of the antennas and devices that is indicated by its
extraordinary features including the long lifetime.
StationBox® is designed to perfectly resist weather anywhere on our planet. It
is made of durable ABS plastic, which is though in large temperature ranges and
is stabilized to resist ultra-violet (UV) rays. All metal parts are made of aluminium.
StationBox® is not IP rated enclosure, but is designed to resist any kind of
weather - rain, sunshine, snow, ice, low or high temperature, low or high air
humidity. Our philosophy of weather resistance is different from having perfectly
sealed box. We allow air to gently circulate in- and out of the box. It improves
cooling of installed device in hot summer. Using leakage hole in lower part of
the StationBox® also allows condensed air humidity to leave the box. With perfectly
sealed box, you simply conserve humidity inside the box and with temperature changes
it just changes its physical state, and it speeds the corrosion process. Rain
nor snow are not allowed to enter inside the StationBox®. The only thing StationBox®
will not survive is being put completely underwater, as put into the sea or waterpool.
Smart and easy maintenance
The base of whole idea of simplicity is TOP COVER which includes a compact bracket
of the StationBox®. During the maintenance operations, the Top cover remains on
its position on a pole or console. This ensures, that the direction to the opposite
side of the link remains untouched. All other parts of the StationBox®, incl.
components placed inside of the StationBox® - antenna and PCB AP/Router board,
are capable to be removed. Consenquently, technician can replace the set directly
at the place of installation, or may decide to perform maintenance at more appropriate
place. Thus, the time of maintenance (or the time of network's upgrade) is reduced
to necessary minimum, counted in just couple of minutes.
2,4GHz 14 dbi

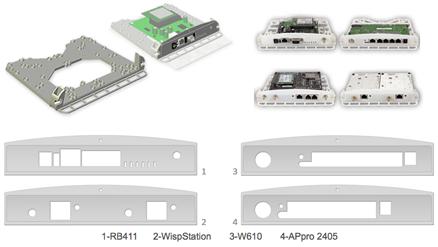

Mikrotik: RB411, RB411A, RB411AH, Crossroads
Ubiquiti Networks: WISPstation - possible to install 2 boards in 1 StationBox,
RouterStation, RouterStation Pro
Wline: W3000G, W4000Gv4, W3000GLX
Compex: WP54AG, WP54G
Wiligear: WBD111, WBD500 in both possible to install 2 boards in 1 StationBox
