Brand | : | C-Data |
Jenis | : | FTTH OLT |
Kode | : | FD1304E-B1 |
Harga | : | Rp 6.075.000,00 |

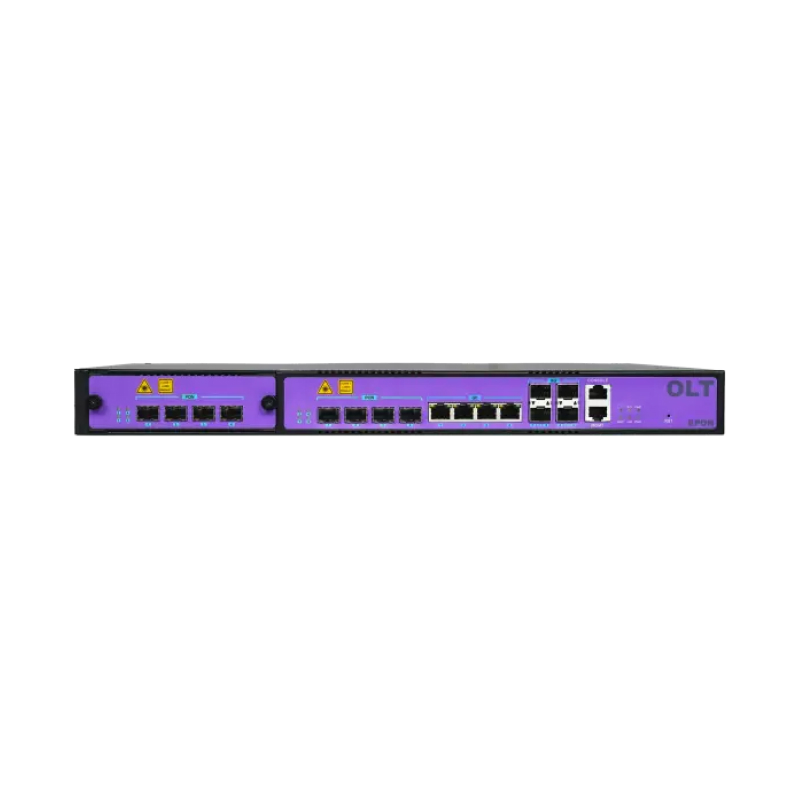

EPON OLT FD1304E-B1 CDATA memenuhi standar IEEE 802.3x dan FSAN. Perangkat ini merupakan perangkat rak 1U yang dilengkapi dengan 4 port uplink GE, 4 port uplink 10GE, 4 port EPON tetap, dan 4 port EPON opsional. Setiap port EPON mendukung split ratio hingga 1:64, dan sistem EPON ini mendukung hingga 512 koneksi terminal.

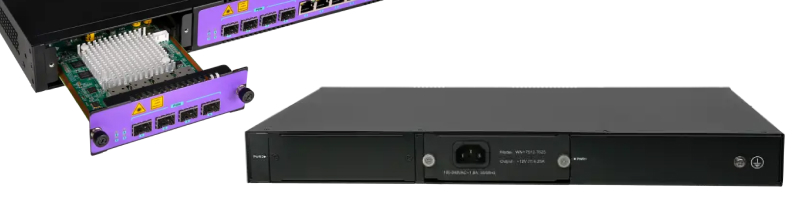

Modul Tambahan Opsional 4 EPON Ports : FD3041T.
Produk ini dirancang untuk memenuhi kebutuhan ruang server yang kompak dengan kinerja tinggi dan ukuran fisik yang ringkas. Hal ini menjadikannya mudah digunakan, fleksibel, dan mudah untuk diimplementasikan. Dari sisi jaringan akses maupun jaringan perusahaan, perangkat ini mampu meningkatkan kinerja jaringan, meningkatkan keandalan, dan mengurangi konsumsi daya. Oleh karena itu, sangat cocok digunakan untuk berbagai skenario aplikasi jaringan, seperti:
Jaringan tiga-layanan (Triple-play) siaran televisi
FTTP (Fiber to the Premise)
Jaringan pemantauan video
Jaringan LAN perusahaan
Internet of Things (IoT)
Specification
Model | FD1304E-B1 |
Type | Rack 1U 19-inch standard box |
Uplink Port | COMBO port : 4 10/100/1000M auto-negotiation Ethernet ports 4 SFP interfaces |
10-Gigabit : 4 SFP+ interfaces | |
PON Port | Quantity : 4/8 |
Physical interface : SFP | |
Interface type : EPON: IEEE802.3ah | |
Max splitting ratio : EPON: 1:64 | |
Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port |
Transmission distance | 20KM |
Port rate | EPON: Symmetrical 1.25Gbps |
Wavelength | Forwarding: 1490nm Receiving: 1310nm |
Interface type | SC/UPC |
Fiber type | 9/125μm SMF (Single Mode Fiber) |
Receiving sensitivity | EPON : -27dBm |
Saturation power | EPON : -6dBm |
Network management method | Support CLI, SNMP, TELNET, SSH, WEB |
Business capabilities | - Support device log, device upgrade, device management, condition monitoring, configuration management, and user management - Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on. - PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. - Layer 3 function: support static routing, dhcp-relay and vlanif configuration. |
Backplane Bandwidth | 108G |
Power supply | 220VAC : AC : 100V ~ 240V, 47/63Hz -48DC : DC:-40V ~ -72V BBU (Backup Battery Unit) : DC: 11V ~ 14V Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply. |
Maximum Power | 78W |
Working temperature | -15 ~ 50 C |
Storage temperature | -40 ~ 85 C |
Ambient humidity | 5 ~ 90% (Non-condensing) |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
