| Brand | : | V-Sol |
| Jenis | : | FTTH OLT |
| Kode | : | V1600GT |
| Harga | : | Rp 6.250.000,00 |

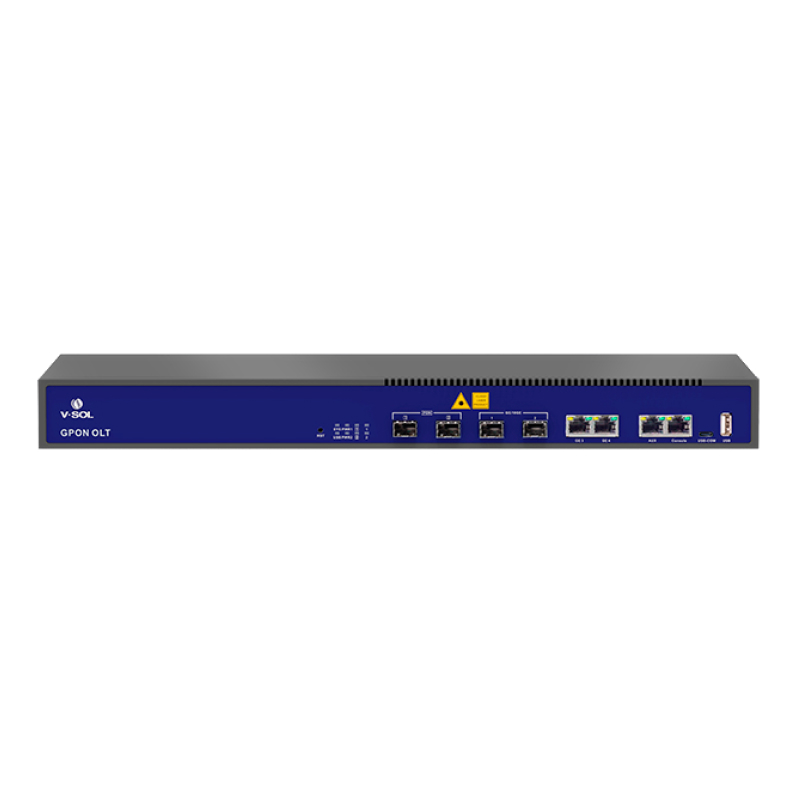

The V1600GT vsol is a box-type GPON OLT with two GPON ports that meets flexible and fast FTTx access, suiting the scenarios such as sparse/remote/cost-sensitive area, smart industrial park, commercial building and FTTM, etc.
2*GE(RJ45)+2*GE(SFP)/10GE(SFP+)
*Sudah termasuk 2x SFP 9dBm
Specification
| Model | V1600GT |
| Uplink Port | QTY : 4 |
| RJ45(1G) : 2 | |
| SFP(1G)/SFP+(10G) : 2 | |
| GPON Port | QTY : 2 |
| Physical Interface : SFP Slots | |
| Supported PON module level : Class C++/Class C+++/Class C++++ | |
| Max splitting ratio : 1:128 | |
| Management Port | 1*10/100/1000 BASE-T out-band port, 1*CONSOLE port, 1*USB-COM, 1*USB2.0 |
| Backplane Bandwidth (Gbps) | 208 |
| Port Forwarding Rate(Mpps) | 40.176 |
| PON Port Specification (Class C+++) | Transmission Distance : 20KM |
| PON port speed : Upstream 1.244Gbps Downstream 2.488Gbps | |
| Wavelength TX 1490nm RX 1310nm | |
| Connector : SC/UPC | |
| Fiber Type : 9/125μm SMF | |
| TX Power : +4.5~+10dBm | |
| Rx Sensitivity : ≤ -30dBm | |
| Saturation Optical Power : -12dBm | |
| Power supply | AC : Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC : 48V |
| Management Mode | WEB , Telnet , CLI |
| Working temperature | -20 ~ +60 C |
| Storage temperature | -40 ~ +70 C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Dimension (L*W*H) | 442 x 200 x 43.6 mm |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
