| Brand | : | V-Sol |
| Jenis | : | FTTH ONT/ONU/MDU |
| Kode | : | V2802DAC |
| Harga | : | |
| 1 - 19 | : | Rp 300.000,00 |
| 20 - ... | : | Rp 295.000,00 |

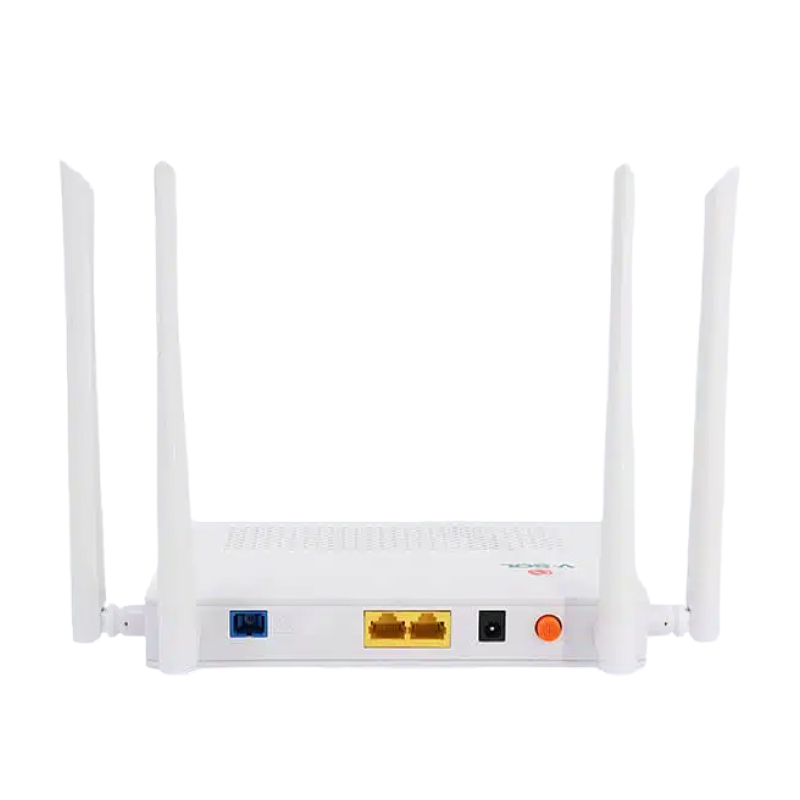

V2802DAC vsol (2GE+WiFi5 XPON ONT) is designed to meet the FTTH requirements of fixed network operators. The ONT is based on a high-performance chipset (Realtek) technology solution, supporting IEEE802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3functions.The ONT supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the VSOL OLT.
2*GE+WiFi5
*Spesifikasi perangkat dijual bisa berbeda dengan yang ditampilkan karena menyesuaikan dengan regulasi di Indonesia.
Key Features :
Specification
| Model | V2802DAC |
| PON Interface | 1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0?+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
| Wifi Interface | Compliant with IEEE802.11b/g/n/ac WiFi : 2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbps Multiple SSID TX power: 2.4GHz: 23dBm; 5GHz: 24dBm RX power: 2.4GHz: HT40-MCS7 -72dBm; 5GHz: VHT80 MCS9 <-62dBm |
| User interface | 2×GE, Auto-negotiation, RJ45 ports |
| O&M | OAM/OMCI, Telnet, WEB, TR069 Support full management of HGU functions by VSOL OLT |
| Connect Mode | Support bridge, router & bridge/router mixed mode |
| QoS | Support 4 queues Support SP, WRR, 802.1P and DSCP |
| Data Service Functions | • Full speed non-blocking switching • 2K MAC address table • 8 full range VLAN ID • Support VLAN tag, untag, transparent, trunk, translation mode • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc • Support auto polarity detection of Ethernet ports (AUTO MDIX) • Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy |
| Wireless | • Integrated 802.11b/g/n/ac • Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) • Modulation type : DSSS, CCK and OFDM • Encoding scheme : BPSK, QPSK, 16QAM and 64QAM • Easymesh |
| L3 | • IPv4, IPv6 and IPv4/IPv6 dual stack • DHCP/PPPOE/Static • Static route, DHCP Server • NAT/DMZ/DDNS/Virtual Server |
| Security | • Support Firewall • Support Mac filter Based on MAC or URL • Support ACL |
| Dimension | 178mm×120mm×30mm(L×W×H) |
| Power adapter | DC 12V, 1.0A, external AC-DC power adaptor |
| Power supply | ≤12W |
| Operating condition | Operating temp : -10 ~ +55C Operating humidity : 5 ~ 95% (non-condensing) |
| Storing condition | Storing temp: -40 ~ +70C Storing humidity: 5 ~ 95% (non-condensing) |
| Indicators | PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
