On Line UPS PlusPRO 1 3000VA/2700Watt

On Line UPS PlusPRO 1 3000VA/2700Watt
klik pada gambar untuk melihat gambar lebih besar

Brand:Aplus
Jenis:UPS
Kode:PLUSPRO1-3000G(B)
Harga:Rp 4.550.000,00
  Rp 5.400.000,00

PlusPro 1-3000G adalah produk dari APlus UPS System dengan rating 3000VA/2700Watt yang memiliki desain tower dan juga fitur "Easy Battery Extender".

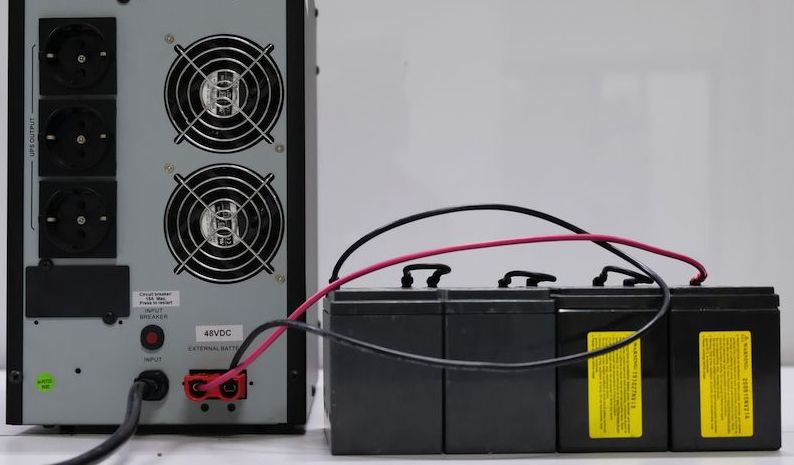

Dilengkapi dengan external battery connector (Anderson connector) sehingga memungkinkan pengguna untuk mudah melakukan penambahan battery jika menginginkan backup time lebih lama.

*Penjualan produk ini termasuk battery

*Pengiriman hanya jalur darat dan area pulau jawa
*Garansi untuk battery adalah 6 bulan

Download Brosur



Features :

  • High-performance true double-conversion On-Line UPS 2000VA
  • External battery connector (Anderson Connector) to extend the backup time
  • Microprocessor control guarantees high reliability
  • Low heat dissipation in long-time operation
  • RS-232 port multiple communications
  • Automatic self-testing function
  • High-efficiency mode (ECO mode)
  • Output voltage regulation +/- 2%
  • Power management software
  • Output power factor 0.9
  • Wide input range
  • Fan speed control
  • DC start





Battery Type :

  • VRLA 12V/9AH
  • 6 pcs (VRLA 12V/9AH included)
  • Battery dimension 151 x 65 x 100 mm



Specification :

Model  PLUSPRO1-3000G(B)
Capacity 3KVA/2.7KW

Input
Voltage 1 Phase 2 Wires with Ground 220/230/240Vac
Voltage Range  100Vac-300Vac
Frequency 50Hz or 60Hz (Auto-sensing)
Current Distortion(THDi)  <5% at full load

Output
Voltage  220/230/240Vac
Voltage Regulation +/-2%
Frequency (battery mode)  50/60Hz ± 0.05Hz
Current Crest Ratio  3:1
Voltage Distortion (THDv)  < 1% (linear load), <5% (non-linear load)
Output Waveform  Pure Sinewave

Efficiency
Inverter Mode  >90%
ECO Mode  >97%

Battery
Voltage  72VDC
Capacity & Number 12V/9AH *6pcs
Recharge Time 4 hours to 90%

Transfer Time
Battery Mode to Inverter Mode  0ms
Inverter to Bypass <4ms

Display
LCD Display Input, Output, Load, Battery, Mode/Fault/Warning code, Inverter operating, Bypass operating, Output voltage and frequency and Bypass disable/enable selection information

Communications
Interface Port RS-232 port

Environment
Ambient Temperature  0°C - 40°C
Humidity <95% (Non-condensing)
Acousitc Noise <50dB at 1M

 Physical
Dimension (D*W*H) 405*195*330mm



External Battery Installation :

- 48VDC Battery (Recommendation VRLA type Battery)

Manual :

PLUSPRO1-Manual
