| Brand | : | TP-Link Omada |
| Jenis | : | Switch Managed |
| Kode | : | SG2218 |
| Harga | : | LOGIN UNTUK MELIHAT HARGA KHUSUS |

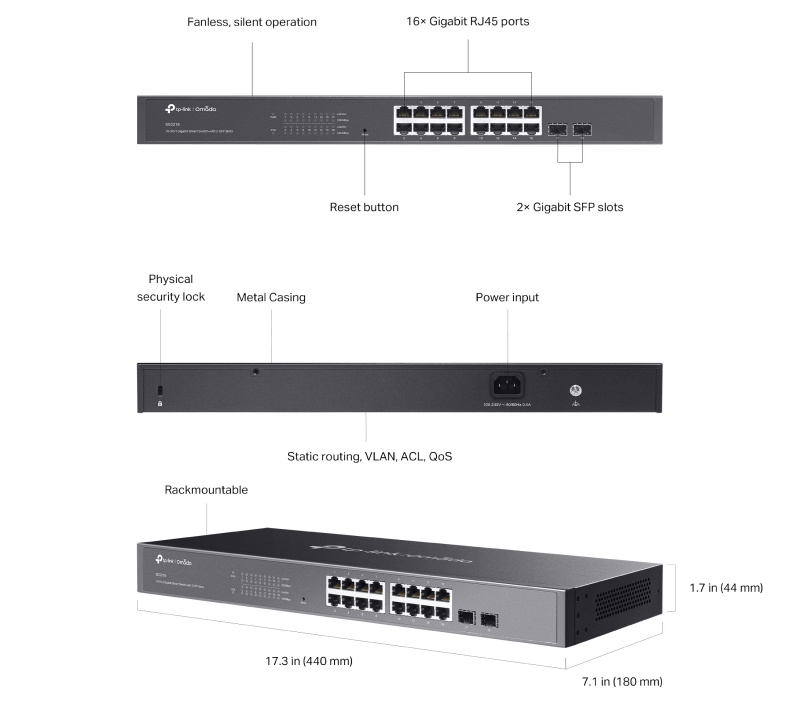

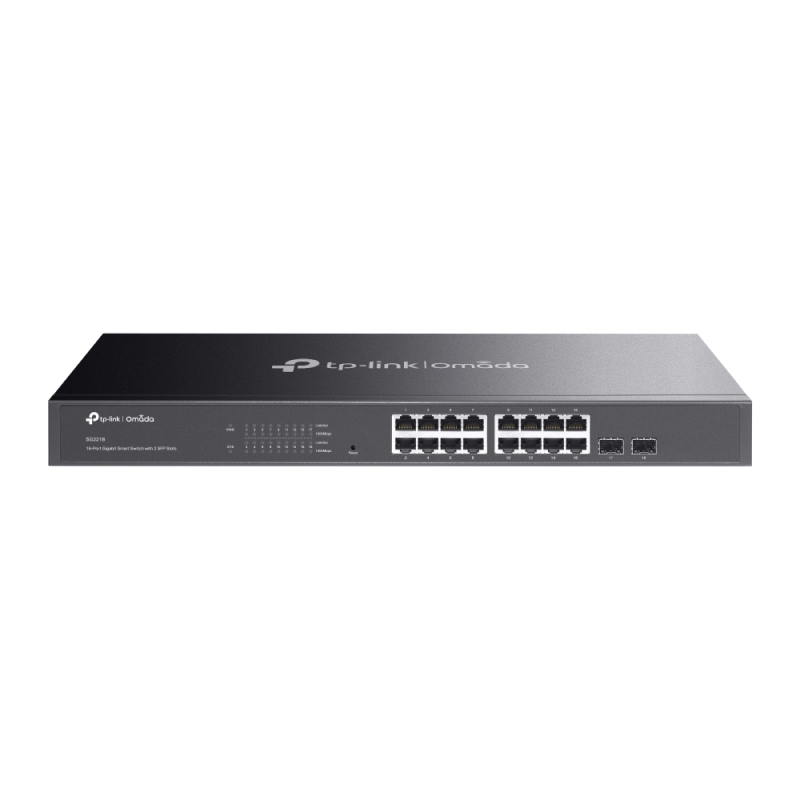

TP-LINK SG2218 OMADA merupakan switch layer 2+ dengan casing 1U rackmount, 16 port Gigabit Ethernet dan 2 port SFP 1G. Dilengkapi dengan fitur Centralized Managed Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6.
Produk ini merupakan produk Fix Price. Pembelian produk tidak dapat menggunakan diskon apapun.
Spesifikasi
| Model | SG2218 |
| HARDWARE FEATURES | |
| Interface | • 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Gigabit SFP Slots |
| Fan | Fanless |
| Physical Security Lock | Yes |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3×7.1×1.7 in (440×180×44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 12.3 W (220 V/50 Hz) |
| Max. Heat Dissipation | 41.97 BTU/hr (220 V/50 Hz) |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.8 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode • SP (Strict Priority) • WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control • Port/Flow based Rating Limit • Smoother Performance • Storm Control • Multiple Control Modes(kbps/ratio) • Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay • DHCP Interface Relay • DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| VLAN | • VLAN Group • Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action • Mirroring • Redirect • Rate Limit • QoS Remark • ACL Rules Binding • Port Binding • VLAN Binding |
| Security | • IP-MAC-Port Binding • AAA • 802.1X • Port-based authentication • MAC (Host) based authentication • Authentication Method includes PAP/EAP-MD5 • MAB • Guest VLAN • Support Radius authentication and accountability • IP/IPv6-MAC Binding • 512 Binding Entries • DHCP Snooping • DHCPv6 Snooping • ARP Inspection • ND Detection • IP Source Guard • 253 Entries • Source IP+Source MAC • IPv6 Source Guard • 183 Entries • Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security • Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control • kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications • DHCPv6 Client • Ping6 • Tracert6 • Telnet(v6) • IPv6 SNMP • IPv6 SSH • IPv6 SSL • Http/Https • IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| OTHERS | |
| Certification | CE, FCC |
| Package Content | • SG2218 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Environment | • Operating Temperature: 0–40C (32–104F) • Storage Temperature: -40–70C (-40–158F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
