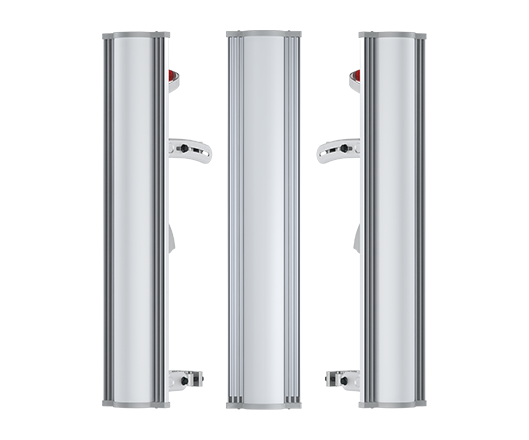

Array Sector Antennas 5GHz - 20dBi

Array Sector Antennas 5GHz - 20dBi
klik pada gambar untuk melihat gambar lebih besar

Kategori:RF elements
  Promo
Kode:AS-5-20
Harga:Rp 2.200.000,00
  Rp 2.645.000,00

Premium sector antennas with integrated BackShieldTM and extremely wide bandwidth. BackShieldTM is our patented frequency-selective surface that effectively attenuates back radiation and the side lobes in the azimuthal plane. BackShieldTM is integrated into the antenna structure so there is no need for aftermarket accessory shields. The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications.

Download Brosur



Introducing The New Array Sector
The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications.

Best in Class Performance

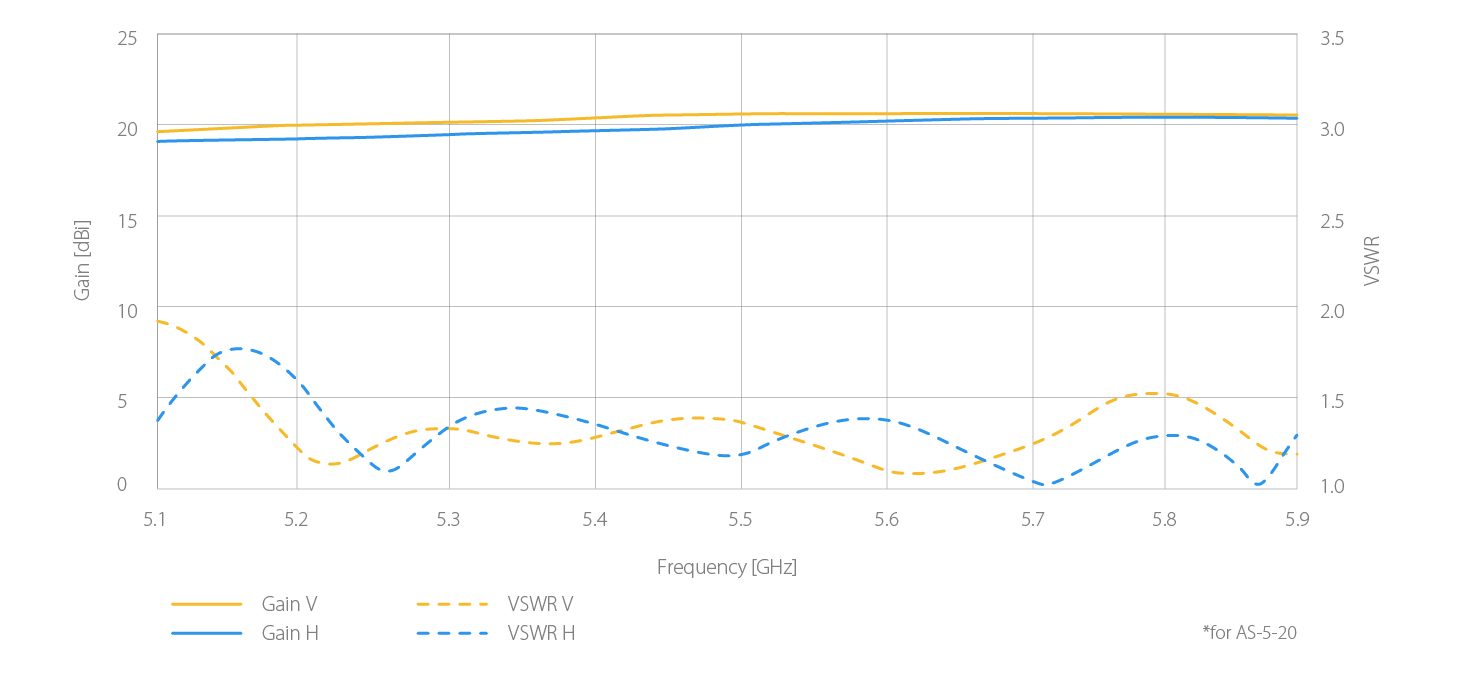

Gain stability across spectrum
RF elements® Array Sector Antennas have optimized gain performance in the whole useful bandwidth. Thanks to the constant gain, the antennas deliver excellent performance regardless which channel is used.

Wide Band Performance
Array Sector Antennas operate in the frequency range 5150-5850MHz. The 700MHz wide working spectrum covers U-NII-1 to U-NII-3 bands.

BackShieldTM for cluster deployments
Array Sector Antennas have integrated BackShieldTM - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

Light & Compact
Array Sector Antennas are made of high grade aluminium that makes them compact, light, and  extremely durable.

Stable Gain Across The Band
The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 5150-5850 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.

Optimized For Co-Location
Array Sector Antennas feature BackShieldTM, our patented structure that effectively mitigates sidelobes in azimuthal plane and parasitic back radiation. BackshieldTM significantly improves co-location capability in dense cluster deployments.

























































































































































































BackShieldTM
BackShieldTM is our patented frequency-selective surface that effectively attenuates back radiation and the side lobes in the azimuthal plane. BackShieldTM is integrated into the antenna structure so there is no need for aftermarket accessory shields.









Wide Platform Compatibility
Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.









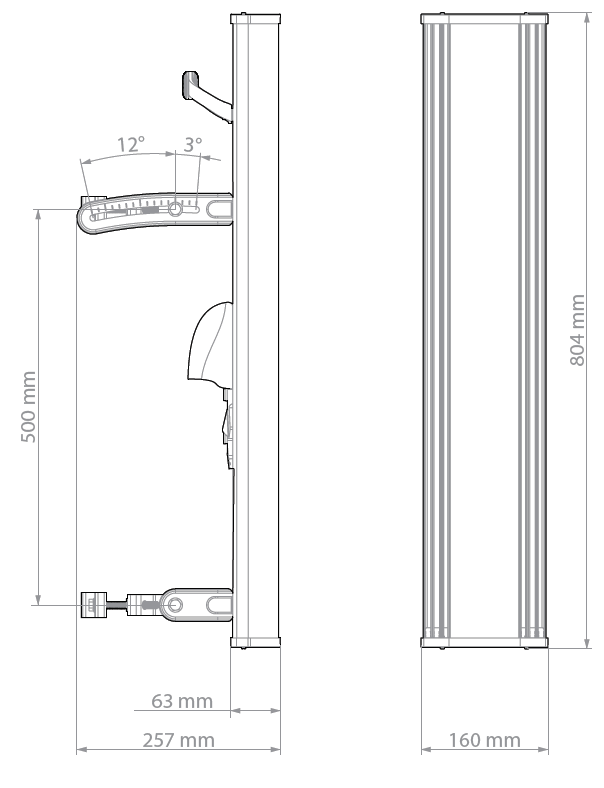

New Antenna Bracket
Array Sector Antennas feature an innovative mounting system composed of minimum parts for quick & easy assembly, installation, and alignment. Stainless steel hardware has black colored anti-friction surface coating to prevent seizing.









Durable Build
Solid extruded aluminium body enables Array Sector Antennas endure any weather conditions. We use materials of highest quality: extruded and stamped aluminium, surface coated stainless steel, UV resistant ABS plastic & high density polyethylene.













Antenna Connection 2x RP-SMA on integrated semi-flex pigtails
Antenna Type Patch Array Sector
Materials UV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel
Flame Rating IP55
Temperature -35°C to +55°C (-31°F to +131°F)
Wind Survival 160 km/h
Wind Loading 160 N at 160 km/hour
Electrical Downtilt
Pole Mounting Diameter 40-80 mm (recommend as close to 80 mm as possible)
Weight 3.5 kg / 7.7 lbs – single unit
  3.8 kg / 8.3 lbs – single unit incl. package
Single Unit Retail Box: 834 x 167 x 130 mm / 32.8 x 6.5 x 5.1 inch

Frequency Range 5150 - 5850 MHz
Gain 20 dBi
Polarization Dual Linear H + V
Azimuth Beam Width -3 dB H 80° / V 71°
Elevation Beam Width -3 dB H 3.5° / V 3.5°
Azimuth Beam Width -6 dB H 100° / V 100°
Elevation Beam Width -6 dB H 4.5° / V 4.5°
Front-to-Back Ratio (Min) 30 dB
Beam Efficiency* 69.00%
Cross Pol Isolation H 27 dB / V 27 dB
VSWR Max 1.7
Impedance 50 Ohm
Isolation Between Ports 30 dB

COMPATIBLE WIRELESS PLATFORMS
RF elements® StationBox® S, StationBox® S CARRIER CLASS, RockShield™
Cambium Networks™ ePMP™ 1000AP and CSM*1, ePMP™ 2000AP*2,
  ePMP™ 3000L AP*3
MikroTik™ BaseBox*4, NetBox*4, NetMetal*4
Ubiquiti Networks™ Rocket™ M5, Rocket™ M5 Titanium, Rocket™ 5ac,
  Rocket™ 5ac Prism, Rocket™ 5ac Prism Gen2, airFiber® 5X,
  airFiber® 5X-HD, LTU™ Rocket
Mimosa® by Airspan A5x
TP-Link Pharos WBS510









Download DataSheet



Download UserGuide











































































































Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.

Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
