UltraDish TP Antennas 27dBi 2Pack

UltraDish TP Antennas 27dBi 2Pack
klik pada gambar untuk melihat gambar lebih besar

Kategori:RF elements
Kode:UD-TP-27-2PACK
Harga:Rp 5.000.000,00
  Rp 5.755.000,00

UltraDishTM TP Antennas are parabolic dish antennas with a wide gain range and lossless TwistPortTM connector. The UltraDish TP Antennas have high directivity and suppressed side lobes for the ultimate performance.

*tidak termasuk TwistPort Adaptors

Download Brosur



High Gain Directional Antennas

UltraDishTM TP Antennas are parabolic dish antennas with a wide gain range and lossless TwistPortTM connector. The UltraDish TP Antennas have high directivity and suppressed side lobes for the ultimate performance.

























































































































































Beam Performance

The radiation pattern of UltraDishTM TP Antennas with suppressed side lobes minimizes the collected and transmitted interference in high-noise areas. The flexible gain of UltraDishTM TP Antennas is achieved by adjusting the size of the main reflector size that focuses the signal fed via the TwistPortTM connector.

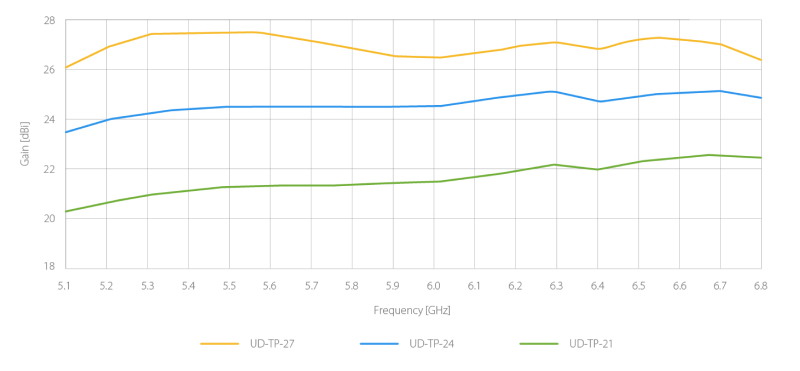

Wideband 5.1 - 6.4 GHz

Stable antenna gain is important for reliable link performance. The gain of all three UltraDishTM TP Antennas is stable in the whole useful bandwidth - from 5.1 up to 6.4 GHz, letting you leverage the whole spectrum between UNII-1 and UNII-5 bands with stable performance regardless of the channel used.










TwistPortTM Connector

TwistPortTM is our patent-pending quick-locking waveguide connector with practically zero loss. It connects our antennas to an RF radio and embodies the new standard for scalable, high-performance, and easy-to-use wireless equipment.









Easy Connection

TwistPortTM operation is extremely easy. The mounting and RF connection of the radio is combined into a single, elegant, and highly functional "twist and lock" design. A single-handed radio installation is now a real option!






Lossless

TwistPortTM connector is practically lossless. With no coaxial connectors or cables, there is no loss introduced during the delivery of the signal from the radio to an antenna. The ultra-low loss of waveguide makes TwistPortTM losses practically unmeasurable.






Cross-Platform Compatibility

UltraDishTM TP Antennas can be used with any radio with a TwistPortTM interface and a variety of third-party radios connected through a TwistPortTM Adaptor.

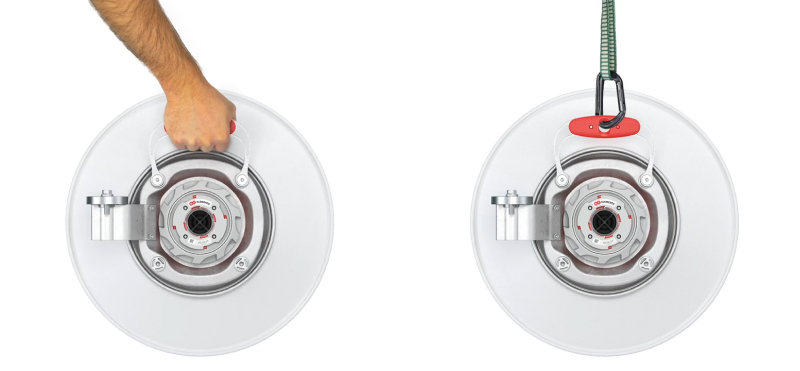

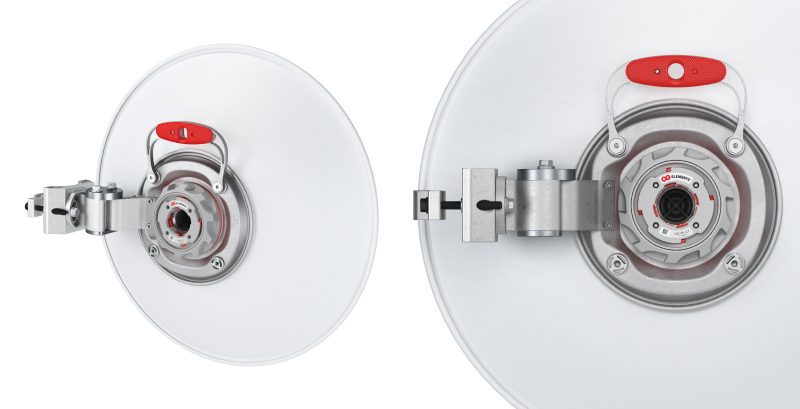

Innovative Mount

UltraDishTM TP Antennas feature an innovative mounting system design optimized for simplicity and durability. The installation and aiming adjustment is quick, easy, and can be done within minutes.


















Specifications :



Antenna Connection TwistPort™ - Quick Locking Waveguide Port
Antenna Type Parabolic Dish
Materials UV Resistant ABS Plastic, Polycarbonate, Aluminium, Stainless Steel

Enviromental IP65
Pole Mounting Diameter 40-80 mm (recommend as close to 80 mm as possible)
Temperature -40 °C to + 60 °C (-40 °F to + 140 °F)
Wind Survival 160 km/hour
Wind Loading 314 N at 160 km/hour

Weight 3.7 kg / 8 lbs – single unit (one antenna)
  10.6 kg / 23.1 lbs – 2PACK (2 units) incl. package
Dimensions Retail Box 5PACK: 630 x 620 x 165 mm

Gain 27.5 dBi
Frequency Range 5180 - 6400 MHz
Azimuth Beam Width -6 dB H 10° / V 9°
Elevation Beam Width -6 dB H 9° / V 10°
Azimuth Beam Width -3 dB H 7° / V 6°
Elevation Beam Width -3 dB H 6° / V 7°
Beam Efficiency* 61 %
Front-to-Back Ratio (Min) 37 dB

COMPATIBLE WIRELESS PLATFORMS
RF elements® any TwistPort Adaptor















Download DataSheet



Download UserGuide
